In today’s power-driven world, power is essential, as industries, homes, and commercial areas depend entirely on it. The Medium Voltage (MV) switchgear panel plays a main role in maintaining reliability and safety.
From managing load flow to isolating faults to protecting electrical components, this panel handles every task. The MV panel ensures stability under every critical condition. The world is moving towards smart grids and renewable energy integration, but the importance of the MV panel is increasing day by day. Understanding the applications, capabilities, and proper selection of panels is necessary to build an efficient and stable system.
What are MV Switchgear Panels?

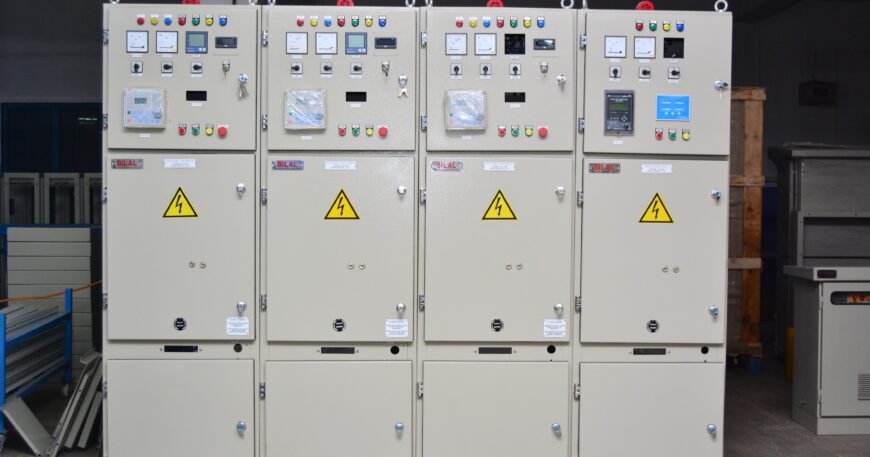

A Medium Voltage (MV) switchgear panel is a centralized electrical system used to protect, control, and isolate power equipment. These panels are operational between 1kV and 36kV. They form an interface between the power generation, transmission, and end-user distribution. Compared to low-voltage switchgear panels, MV panels handle high fault levels, thermal stress, and system stability challenges well.
The MV switchgear panels consist of various parts:
- Circuit Breaker (Vacuum or SF6-based)
- Busbars and Isolators
- Instrument Transformers (CTs and VTs)
- Protection Relays ( Digital or the numerical ones)
Application of Medium Voltage Switchgear Panels
Modern power systems don’t provide one-way power distribution; rather, they are dynamic and load-intensive. That’s why the Medium Voltage switchgear panels are important. Not only does it provide basic protection, but it also enables controlled power flow, operational flexibility, and rapid fault management. It is important to understand its real-world applications, which demonstrate how it supports performance and power distribution.
Industrial Power Distribution
Industries such as cement, textiles, steel, and chemical plants operate with large motors, furnaces, compressors, and continuous process lines. This heavy machinery required a stable medium-voltage switchgear panel. These panels serve as a central point, managing and protecting the electrical system.
In cement plants, steel mills, and sugar mills, there is a need for motors that require high starting current, let’s say 5 to 7 times the rated current. The MV panels, with the help of vacuum circuit breakers, handle these situations with ease.
Utility Substations and Grid Networks
In the electrical system, the medium-voltage switchgear panels are located in the primary and secondary substations. These play a key role in the distribution of power between high-voltage transmission and end users. The medium-voltage switchgear panels are also considered the first line of defense for grid stability. This ensures that any localized faults do not spread widely, isolating the affected part.
The MV switchgear panels perform three major functions:
- Switching Operations: they connect and disconnect the feeder on demand for load or maintenance schedules.
- Load Management: The MV panels help to balance the power across multiple feeders to prevent overloading and overheating.
- Protection: the most important step is protecting the transformers, cables, and outgoing lines from damage or faults.
Commercial and High-Rise Infrastructure
Large commercial areas, such as malls, airports, and offices, rely heavily on MV switchgear panels to efficiently distribute power throughout these spaces. Compared to low-voltage switchgear panels that distribute power over small areas, these MV panels distribute power with zero to minimal loss.
These Medium-Voltage Switchgear panels perform these essential tasks:
- The MV panels act as the centralized control of transformers and feeders
- They support automatic transfer between the backup generators and the utility
- These MV panels minimize the voltage drop and energy losses.
Renewable Energy Integration
Renewable energy sources, such as solar and wind, generate power at various scales. This energy generation is collected, controlled, and synchronized with the grid. Here at this point, the switchgear panels play an important role.
- In solar farms, the energy is generated by the switchgear panels and is stepped up to either 11kV or 33kV. The MV panels also collect the power from multiple inverters and ensure a safe connection to the grid.
- In wind farms, each turbine feeds into the MV network. The switchgear is responsible for controlling and distributing the generated power.
In renewable energy, the main challenge is fluctuating output. Here, the medium-voltage switchgear panels are managed to provide protection against reverse power flow and enable safe disconnection during grid faults.
Urban Distribution Via Ring Main Units
In rural and urban areas, power generation and distribution are very challenging. The MV switchgear panel commonly uses the Ring Main Units (RMU).
The Ring Main Unit (RMU) is a compact, enclosed switchgear system that operates in a ring network topology, allowing power flow from multiple directions. The RMU operates such that, if there is a fault in the system, it isolates only the affected part. The power continues to flow from the alternate path.
In the event of a feeder trip, there is still an uninterrupted power supply. And the RMU’s compact design makes it ideal for underground installation. In smart cities with underground power distribution and high-density urban development, the RMS is the perfect choice.
Key Features of Medium-Voltage Switchgear Panels
Understanding the key features of the MV panels is important, as they are not just elements; each feature plays an integral role in ensuring that the electrical network performs consistently.
| Feature | Technical Function | Benefit | Real-World Impact |
| High Fault Withstand Capacity | They are designed to handle and interrupt high short-circuit currents. The range lies between 16 kA and 50 kA. The circuit breakers detect any abnormal current and help trip the affected areas using the protection relays.
| They help prevent thermal and mechanical damage to the electrical system. | In industrial settings, if any cable or equipment is damaged, the system is isolated to prevent transformer damage, cable burning, and a complete plant shutdown. |
| Arc Fault Protection | The MV panels use arc-resistant enclosures and pressure-relief flaps to contain the internal arc energy, which may exceed 20,000 degrees Celsius. | The features help ensure the operator’s safety and limit equipment damage. | In the case of an internal fault, the hot gases and pressure are safely redirected. It also prevents explosions and protects maintenance personnel. |
| Modular Design | The modular design comprises separate financial units, such as outgoing feeders and bus sections. These units operate independently within the panel’s selected range. | The feature enables scalability and simplifies maintenance. | The faculty sections can be isolated and repaired without shutting down the system. |
| Multiple Isolation Options (AIS, GIS, VCB) | Various kinds of technologies provide insulation and arc quenching. | There is a flexibility in design based on the space, cost, and reliability. | The GIS is used in compact areas, whereas the AIS is used in large installations. The VCB is used in industries requiring low maintenance. |
| Smart Monitoring (SCADA Integrations) | The feature helps to integrate the digital relays and the communication system for real-time monitoring, remote control, and data analysis. | The feature helps improve operational efficiency and enables automation. | The operators can easily detect faults, control switching remotely, and help perform predictive maintenance. |
Conclusion
The MV switchgear panels are essential parts of electrical systems. These panels help ensure that power is distributed safely and that faults are handled without affecting the entire system. From factories to commercial buildings to the power grid and renewable energy plants, the MV panel plays its role well by smoothly operating the system.
In simple terms, the medium-voltage switchgear panels are the backbone of the reliable power distribution system. They ensure that the electricity flows efficiently while protecting the equipment.
