From small commercial buildings to national grids, electrical systems operate at different voltage levels to ensure efficient transmission and safe distribution. Here, LV (Low Voltage), MV (Medium Voltage), and HV (High Voltage) switchgear panels play an important role. Every category is designed for a specific range of operation, load capacity, and application environment.
Choosing the right panel is important because selecting the wrong type can lead to inefficiencies, safety risks, and costly failures. It is very important to understand that the real differences between the LV, MV, and HV switchgear panels go beyond technical knowledge. It is essential for designing reliable electrical systems and optimizing performance across various industries and commercial areas.
Core Differences Between LV, MV, and HV Switchgear Panels
The main differences among switchgear panel types lie in their voltage ranges, applications, design complexities, and protection mechanisms. Each level serves as a distinct stage in the distribution of power.
High Voltage (HV) – Above 36kV
- These high-voltage switchgear panels are used for long-distance power transmission from generating plants.
- They can reduce current at the same power level, thereby reducing line losses.
- These panels are applied in the grid stations and large substations (e.g., 132kV, 220kV)
- They are designed for bulk power transmission and maximizing efficiency.
Medium Voltage (MV) – Up to 1kV to 36kV
- These medium-voltage switchgear panels are used in regional and industrial distribution networks.
- The common voltage range: 11kV and 33kV
- They supply power to factories, commercial areas, and local substations.
- Their main focus is on load management, feeder control, and fault isolation.
Low Voltage (LV) – Up to 1kV
- They are used for the final power delivery to end users.
- Their common
- Voltage level is 400V, 230V
- They are used in homes, offices, and small industries.
- The low-voltage panel priority is user safety, accessibility, and the ease of operation.
Why do these Classifications matter?
Ensure efficient power transfer from generation to consumption:
- Various voltage levels are used at different stages to match the purpose of the power flow.
- High voltage is used for power transmission to carry large amounts of power over long distances efficiently.
- The medium- and low-voltage levels ensure safe, controlled delivery to the user.
- The structured flow avoids unnecessary energy waste and system overload.
Reduced Energy losses during transmission:
- The power loss in the lines depends on the current
- As the voltage increases (HV), the current decreases for the same power.
- The lower current means significantly less heat loss in transmission lines.
- The reason is that electricity is always transmitted at a high voltage before being stepped down.
Allow better fault isolation at each level:
- The faults are contained within the specific voltage level (HV, MV, or LV)
- The LV and MV switchgear isolates only the affected section rather than shutting down the entire system.
- The cascading failure across the network is also prevented.
Optimizes cost and equipment design for each stage:
- HV systems are no doubt expensive, but they are essential for transmission efficiency.
- The MV systems balance the cost and performance for distribution.
- LV systems are simpler and cost-effective for end users.
- Using the right voltage levels avoids overdesign or underperformance.
Design Complexity and Constructions
As the electrical system moves from low to high voltages, there is a clear progression in safety requirements and physical infrastructure. The LV switchgear panels are designed for simplicity, while the MV switchgear panels are designed to introduce controlled complexity to handle higher loads. And the HV system is built for extreme conditions. It is necessary to understand the design, protection, and installation of the LV, MV, and HV systems for the right applications.
| Parameter | Low-Voltage Switchgear Panel | Medium-Voltage Switchgear Panel | High-Voltage Switchgear Panel |
| Design Complex and Construction | The simple design has minimal components present. This one is easy to assemble and operate. These panels use air insulation and compact structures, making them suitable for indoor use. | This panel has moderately complex construction. These MV panels include the VCBs, protection relays, and control systems. These use AIS or GIS, depending on the application. | These panels are highly complex and designed at a large scale. They require advanced insulation, such as in GIS and hybrid systems. They are built to withstand the extreme electrical and environmental stresses. |
| Protection and Safety Mechanisms | These are basic protection devices, such as MCBs, MCCBs, and overload relays. These are suitable for low fault levels and simple applications. | These switchgear panels feature advanced protection, including numerical relays, VCBs, and arc protection systems. These enable the selective fault isolation and improved system reliability. | The panels are specifically designed for distance and differential protection. They are also designed for the fault energy and grid-level safety |
| Installation Environment and Space | These panels can be installed indoors with a small footprint, requiring minimal space and simple infrastructure. | These can be easily installed indoors or outdoors; they require moderate space and proper safety clearances. | These panels are mostly installed in outdoor substations. They require large spaces due to high insulation clearances and equipment sizes. |
Real World Application Examples of How LV, MV, and HV Work Together
In the real world, it is very important to see how LV, MV, and HV work together as a coordinated, multi-stage electrical network to ensure that electricity is delivered safely and efficiently. The power does not flow directly from the generator to the users; it is stepped up and down in stages to optimize transmission efficiency. Every stage has its own switchgear panel responsible for protection, control, and fault isolation.
Stage One: High Voltage Switchgear Panel
When electricity is generated at power plants, it is initially produced at a relatively low voltage. This is then stepped up using transformers to high voltage levels. I.e., 132V, 220V, or higher than the value. This step is important because high-voltage power transmission reduces current, which in turn reduces line losses over long distances.
The HV switchgear is used in large substations to control bulk power flow across transmission lines and to protect the grid from major failures, such as line outages or short circuits. These panels are designed to handle very high loads and extreme electrical stress. It is to make them essential for connecting power plants to regional grids.

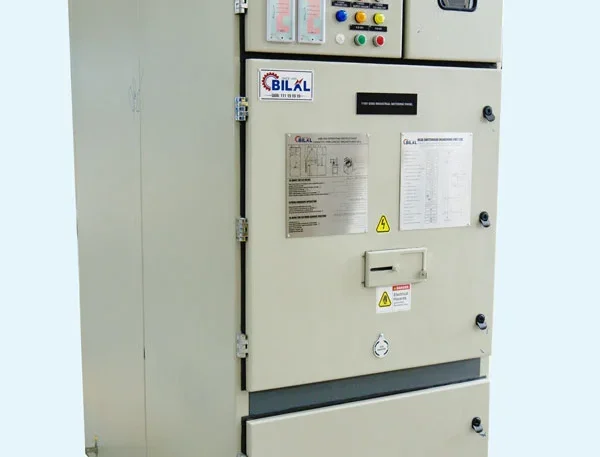

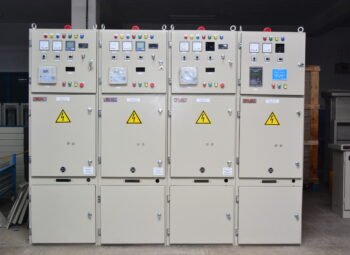

Stage Two: Medium Voltage Switchgear Panel
After the electricity reaches the substations near towers serving the city and industrial areas, it is stepped down to medium-voltage switchgear panels, typically from 11kV or 33kV. The power level is ideal for short-distance power distribution. This is all done by maintaining control and efficiency.
The MV switchgear panel plays a crucial role in distributing power to multiple feeders across various areas and in managing industrial loads, such as motors, machinery, and large components. It also helps in supporting the integration of backup systems and renewable energy sources.
Final Stage: Low Voltage Switchgear Panel
The last stage is where the electricity is further stepped down to low-voltage levels, 400V or 230V. This is very suitable for direct consumption. The level at which end users interact with electricity. The low-voltage switchgear panel is responsible for distributing power within buildings, homes, and small industries.
They protect circuits from overloads and short circuits using devices such as MCBs and MCCBs. They ensure that the operation is safe for users and all electrical equipment. They help to provide easy access for operation, maintenance, and control.
Conclusion
From transmission to the final consumption of electricity, switchgear panels, LV, MV, and HV, have differing but equally important roles in the electricity power system. The differences in design, protection, and application for the individual technologies is not just technical, but relates to the efficiency, safety, and reliability of the system at each stage.
Choosing the appropriate level of switchgear is crucial for loss prevention, risk reduction, and performance optimization in modern electrical systems.
