Low-voltage switchgear panels are considered a critical element of the electrical system. They are designed and managed to distribute low-voltage power safely. The LV panels play a key role in ensuring that electricity flows efficiently, protecting the equipment and avoiding damage.
Low-voltage panels are widely used in residential, commercial, and industrial settings. It is necessary to understand the basics of LV panels to maintain reliable and safe operations.

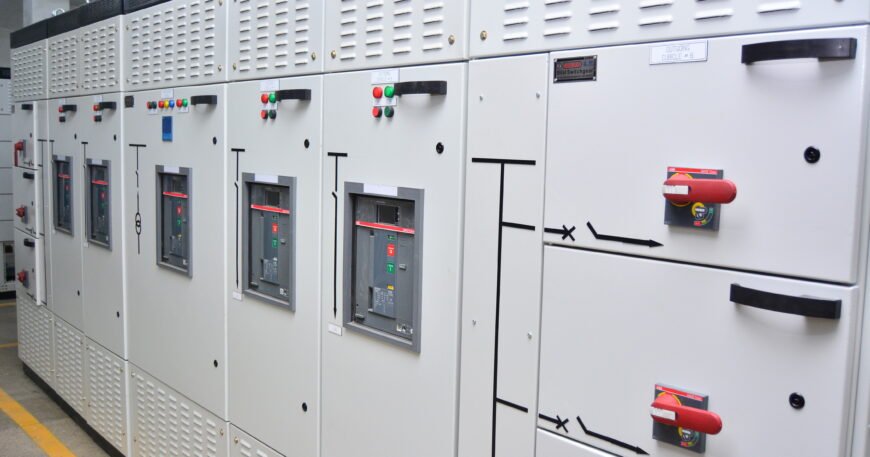

What is an LV Switchgear Panel?
Low-voltage switchgear panels are assemblies of electrical devices used to control, protect, and isolate low-voltage electrical circuits. They are also known as the central point of the electrical system, responsible for receiving and distributing power to various loads. These panels are designed to handle the faults and maintain system stability.
Important Characteristics of LV Switchgear Panel
- Voltage Range up to 1000V AC/ 1500V DC
- Designed according to IEC61439 Standards
- Rated Current (In) varies based on load requirements
- Designed for a specific duty cycle and Load conditions
Function of an LV Switchgear Panel
The functions of low-voltage panels include power flow, monitoring, and automation. These help to make the system work efficiently and work with stability.
Step-by-Step Functions of LV Panels
- Fault Level Handling Capacity: They are designed to withstand and interrupt high fault currents. The panels are designed to handle high current safely. Short-circuit protection is installed to prevent sudden increases in current.
- Load Management and Distributing Balance: The LV panel ensures that electricity is evenly distributed to various parts and machines. All three phases are balanced for smooth operations.
- Sensitivity and Coordination Between Protection Devices: If a fault occurs or overheating occurs, only the affected part is shut down. The panel makes sure that the nearest breaker trips while the other parts run smoothly. This not only saves time but also avoids shutting down the entire system.
- Integration and Automations: The modern panels are connected to smart systems such as PLCs and SCADA. They can monitor voltage, current, and power. The system is automatic and easily accessible. This helps detect problems early and reduce downtime.
Main Parts of an LV Switchgear Panel
The structure of LV panels is carefully designed to organize all the electrical components so they can work efficiently. Each part carries its own significance, contributing to the thermal system’s safety and power distribution. Proper design ensures durability and optimal performance. Let us have a look at the main parts of the LV panes.
| Parts of Low-Voltage Switchgear Panel | Description | Characteristics |
| Enclosure | The enclosure is the outer body that protects the internal components from harsh environmental conditions. | The enclosure is made of powder-coated steel or stainless steel, with an indoor/outdoor design and corrosion resistance. |
| Busbars | The busbars are the conductive bars that distribute power within the panel. | They are made of copper and aluminum materials. They are either insulated or bare; they have a high-current rating of up to 66000 A. |
| Segregation | The segregation provides internal separation of the component for safety and fault isolation. | There are levels of segregation from level 1 (basics) to level 4 (maximum). These levels help to improve the safety, reduce damage, and maintain the system. |
| Ventilation System | The system maintains temperature and prevents overheating. | The ventilation, forced cooling, and heat dissipation designs are limited as per ICE. |
| Insulation and Barriers | The insulation and the barriers prevent accidental contacts and short circuits. | Insulation materials include high-dielectric-strength phases and barriers. |
| Mounting Structure | The mounting structure securely supports all internal components. | The modular design and bolted construction allow easy expansions and component replacement. |
Types of Low-Voltage Switchgear Panel
LV switchgear panels are categorized by their applications and functions. The types are well-designed to meet the specific operational needs and ensure that the system operates efficiently and reliably.
Main Distribution Board (MDB)
The main distribution board is the primary panel that receives the power directly from the transformer. It is the starting point of the entire electrical distribution system,
- The main distribution board handles the facility’s full load.
- It supplies power to all the downstream panels.
- It is equipped with high-capacity breakers, such as ACBs and MCCBs.
Sub Distribution Board
An SDB is the power-receiving board from the main distribution board, which then distributes power to smaller sections. For greater safety and control, it precisely divides the load.
- It is used for the localized power distribution
- It is installed on different floors and departments
- It handles lower loads better than MDB.
- It helps to improve the system organization.
Motor Control Center (MCC)
The MMC panel is designed so that it can control and protect the power. They are used in an industrial environment where multiple motors are operational.
- MCC controls the starting, stopping, and protection of the motors.
- They include heavy machinery, overload relays, and production lines.
- They ensure safe motor operation.
Power Control Center (PCC)
The PCC switchgear panels manage and monitor the overvoltage system. They can centralize the control for better efficiency.
- PCC panels use the main power control and monitoring.
- They can handle the large electrical loads.
- These panels have metering and protection devices.
- They are used in industrial and commercial setups.
Automatic Transfer Switch Panel (ATS)
The automatic transfer switchgear panel automatically switches the power supply from the main switch to a backup source, such as a generator.
- These panels ensure the uninterrupted power supply.
- They can automatically detect power loss.
- They can automatically switch between the main and backup sources.
- They are used in hospitals, data centers, and offices.
Applications of Low-Voltage Switchgear Panel
LV panels are used across various sectors due to their ability to control and protect electrical power safely. They allow them to support everything from small buildings to large commercial areas.
Industrial Plants
In industrial plants, the low0voltage switchgear panels play a vital role in protecting and powering the system. They can handle high loads and provide continuous production cycles.
The LV panels integrate with the motor control center (MCC) and protect against overloads and short circuits. They support high current loads for machines and equipment.
Commercial Buildings
The commercial building needs efficient and organized power distribution to handle the lighting, HVAC system, and elevators. These switchgear panels help handle heavy loads safely. They’re designed for power distribution across multiple floors and sections.
They support the lighting, air conditioning and elevators.
In commercial areas, the LV panels enable centralized monitoring and control. These panels help improve energy efficiency and load management.
Residential Complexes
In residential areas, buildings, and societies, LV switchgear panels are used to manage centralized power distribution. They supply a safe electricity supply while protecting residents from faults. They distribute the electricity to each apartment.
These LV panels protect against short circuits and overloads. These panels also have backup systems, such as UPS units and generators.
Data Centers
The LV panels are installed in data centers where uninterrupted, reliable power is distributed. Thanks to the power supply, the servers and IT systems keep running. The main part of the LV switchgear panels is the infrastructure. These ensure the stable power distribution and quick fault response.
There is a continuous power supply to the servers and the networking equipment. They also minimize the downtime and protect the sensitive equipment.
Hospitals and Life-Saving Centers
Hospitals and life-saving centers depend on a reliable, continuous supply of power. These LV panels ensure an uninterrupted power supply and quick switching to the backup system. These support critical equipment, such as ventilators and heavy machinery, in operating theaters.
These are integrated with the ATS panels for automatic backup switching. These panels also ensure zero to minimal power interruptions.
Conclusion
Low-voltage switchgear panels are fundamental components of any electrical distribution system. They ensure the safe, efficient, and reliable delivery of power. From controlling and protecting the circuits and detecting the faults, these panels play a critical role in maintaining the system.
As electrical demand increases, it is important to invest in well-designed and well-maintained LV panels, which reduce risks and downtime.
