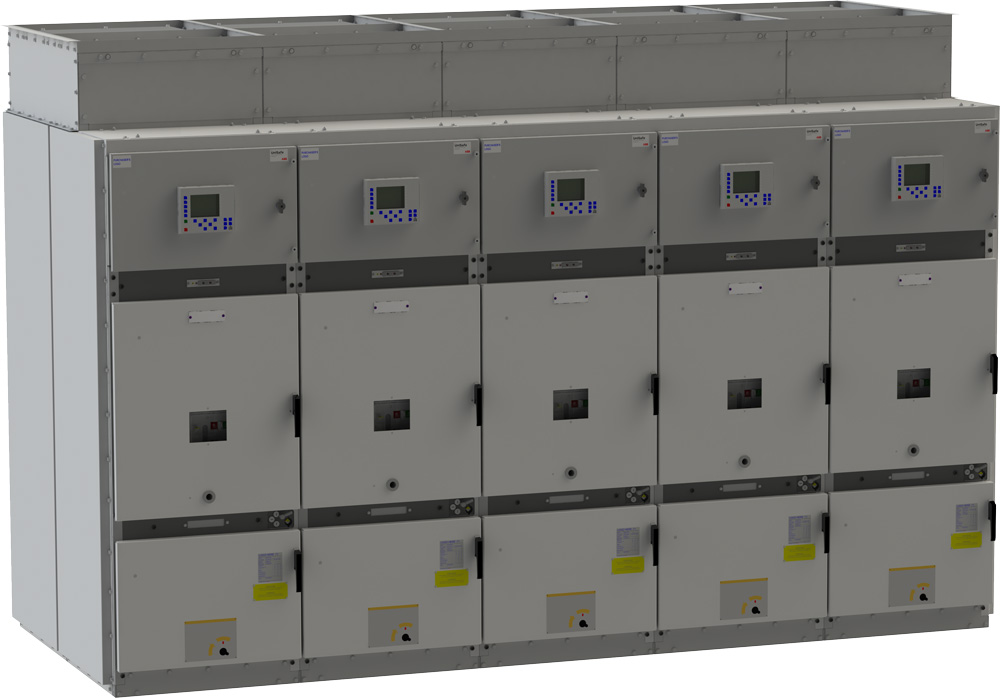

MV Type Tested Switchgear UniSafe 2.0-(ABB Italy)

• Fully type tested as per IEC 62271-200, internal Arc Classified IAC AFLR.
• Loss of service continuity LSC2B and PM metallic partition.
• Wide range of applications, Vacuum or SF6 Circuit breakers as well as Vacuum contactors.
• Ideal solution for Industry, Utilities and Infrastructure projects. Panel is only 600 mm wide up to 1250A.

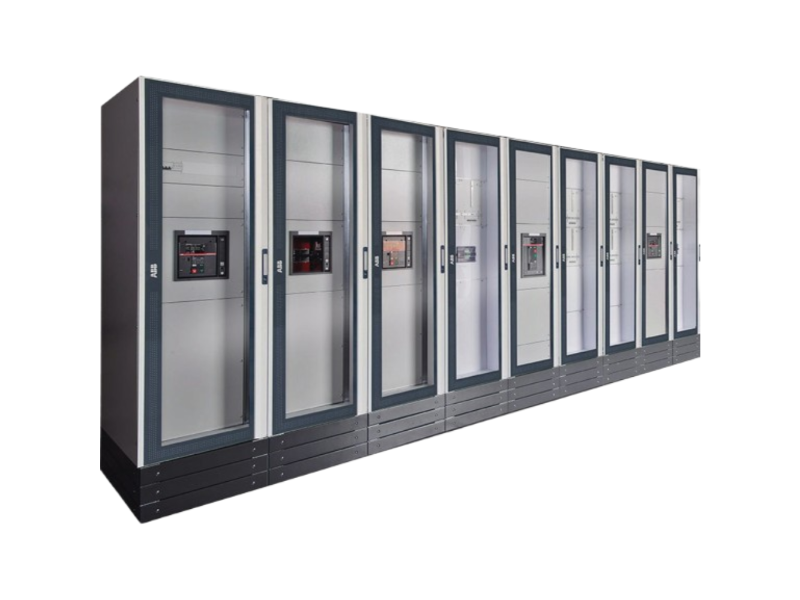

LV Type Tested Switchgear-System Pro E (ABB)

Fully type tested for Conformance to IEC-61439 1 &2
Rated Voltage: up to 1000V AC — 1500V DC
Rated Current: up to 6300A
IP Protection: IP 30 to IP 65
Form of Segregation: Form-1 to Form-4

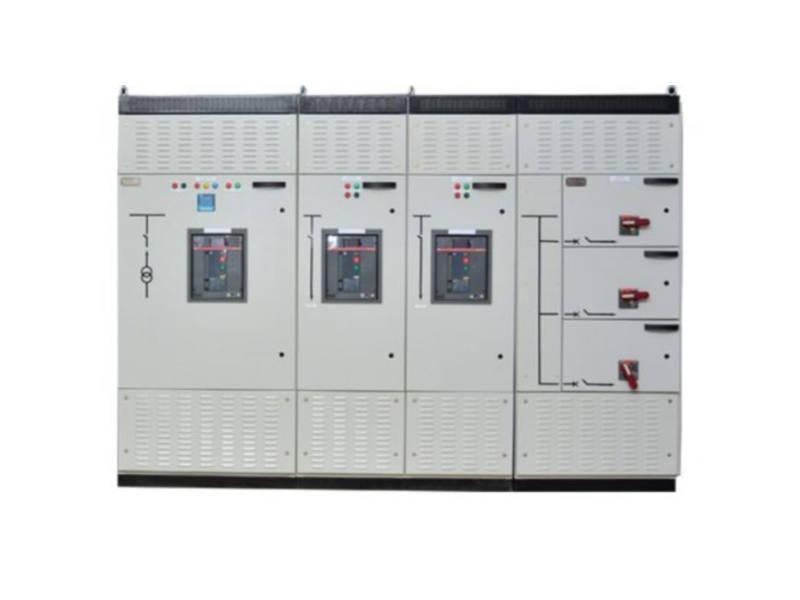

Low Voltage Panels

Low Voltage Switchgear Cubicles are manufacture from 400A to 6300A according to
IEC-61439-1&2. All measuring and recording instruments like Ampere Meter, Volt Meter,
Energy Meter etc. are mounted on the front door in Semi Finished Style for easy
accessibility for checking of the instrument on the inner side of the door.
Main LT panels, Sub Main Distribution Boards, Motor Control Centers, PFI plants and

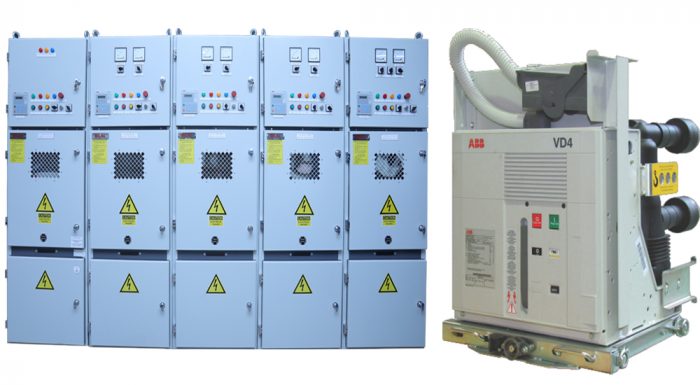

Medium Voltage Panels

Medium voltage switchgears are manufactured from 6.6 kV, 24 kV and 33 kV.
The panels design incorporates all necessary interlocks to safeguard the equipment as well as operating staff.
All protection relays, measuring and protection instruments are mounted in the
instrument and relay compartment for easy accessibility.

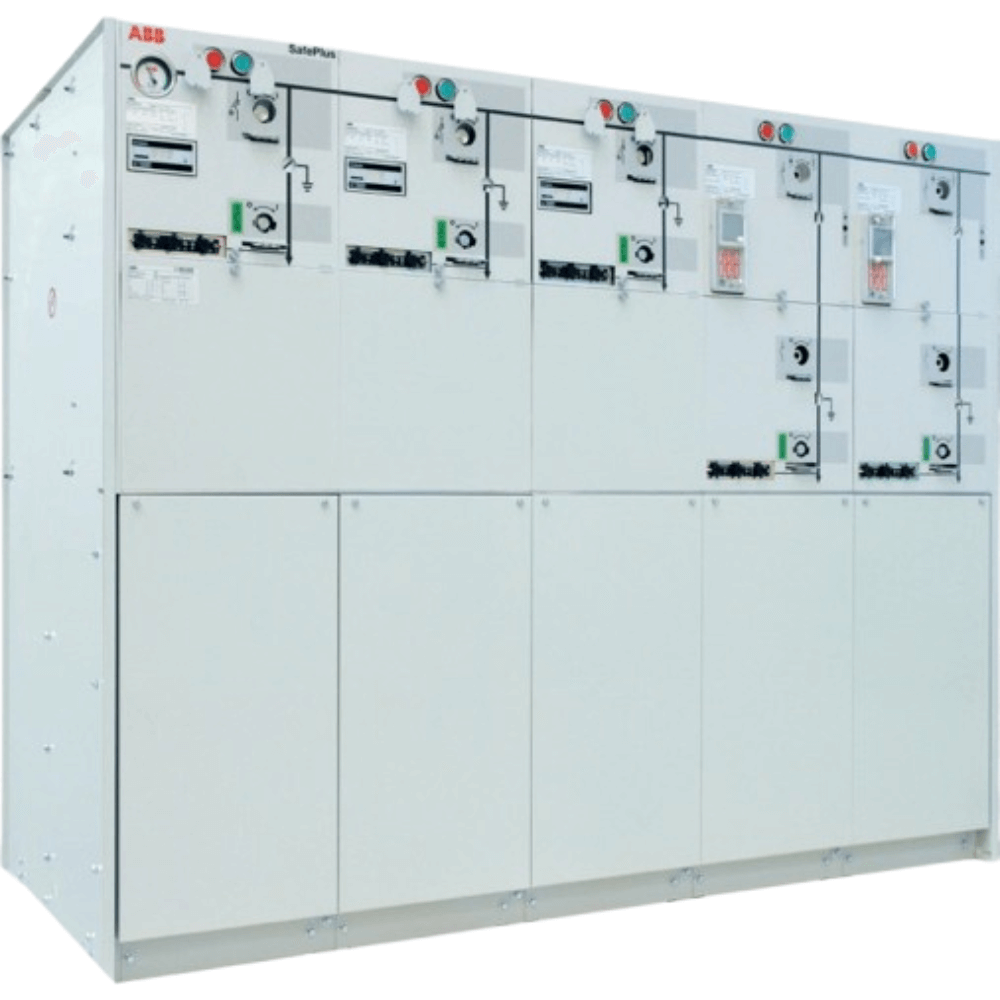

Ring Main Units 12-24KV-Safe Ring/Safe Plus ABB

Extendable Ring Main Unit – Safe Ring.
Compact Switchgear – Safe Plus.
System Voltages from 12 to 24kV.
Switch, switch-Fuse & Circuit Breaker (VCB) options.
Internal Arc Classification IAC AFLR up to 25KA/1s
SF6 Gas-Insulated for excellent performance.

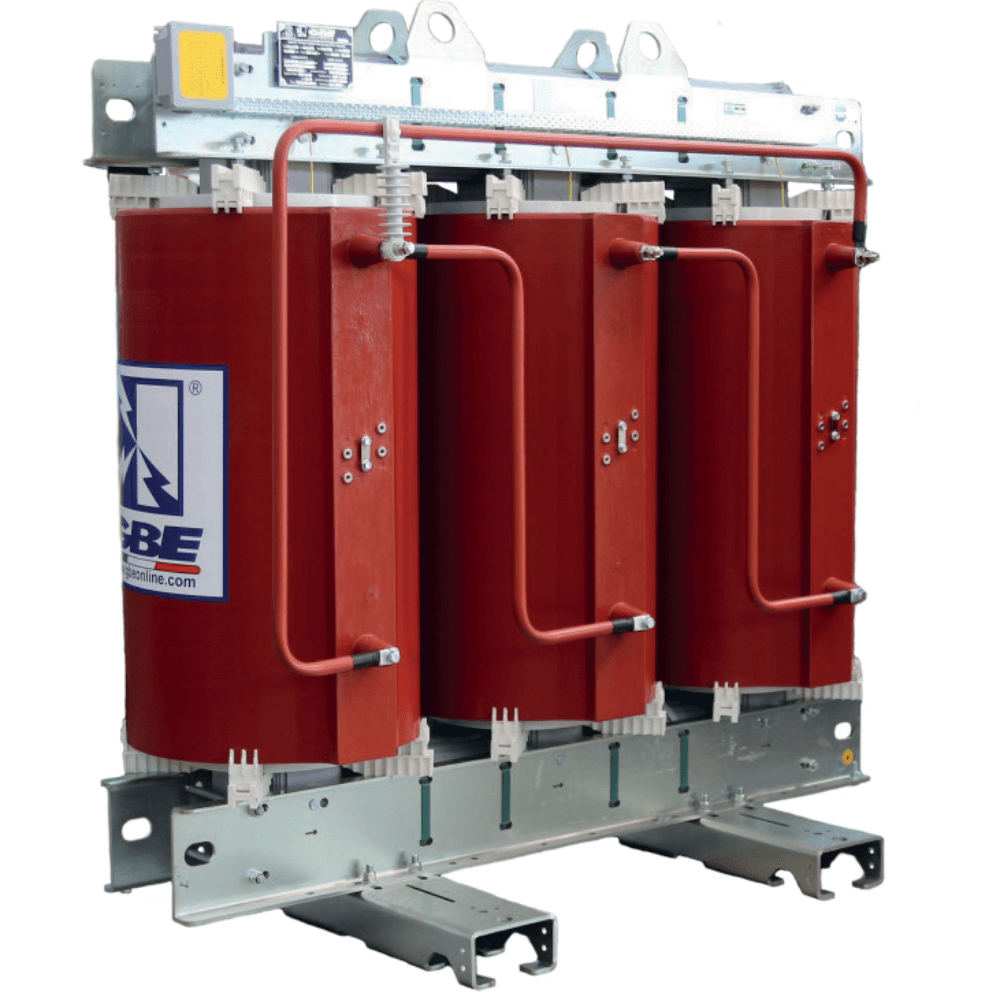

Dry Type Transformer-GBE (Italy)

Cast Resin or Vacuum Impregnated
Rating up to 30 MVA
Voltage Level up to 52KV
Copper OR Aluminum winding
Guaranteed zero tolerance lower losses by Eco-design
Type tested by CESI according to latest standards
Tailored for all applications

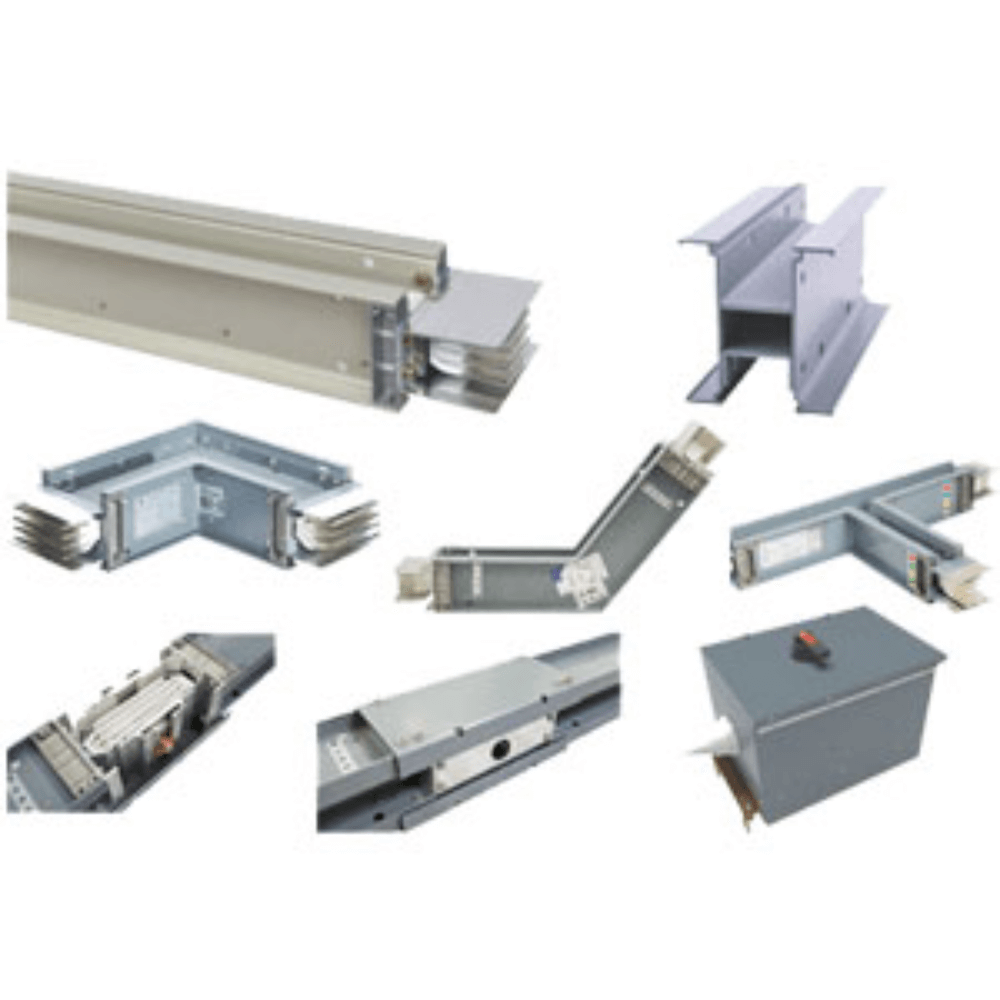

LV Busway System-MEGABARRE (Italy)

Maintenance free Monoblock joint
IP55 protection degree without any additional accessories and up to IP66 can be offered
Thermal class (150°C)
Fire resistant barrier can be provided
Painted Extruded Aluminum Alloy Casing with high mechanical strength characteristics
Copper & Aluminum Conductors

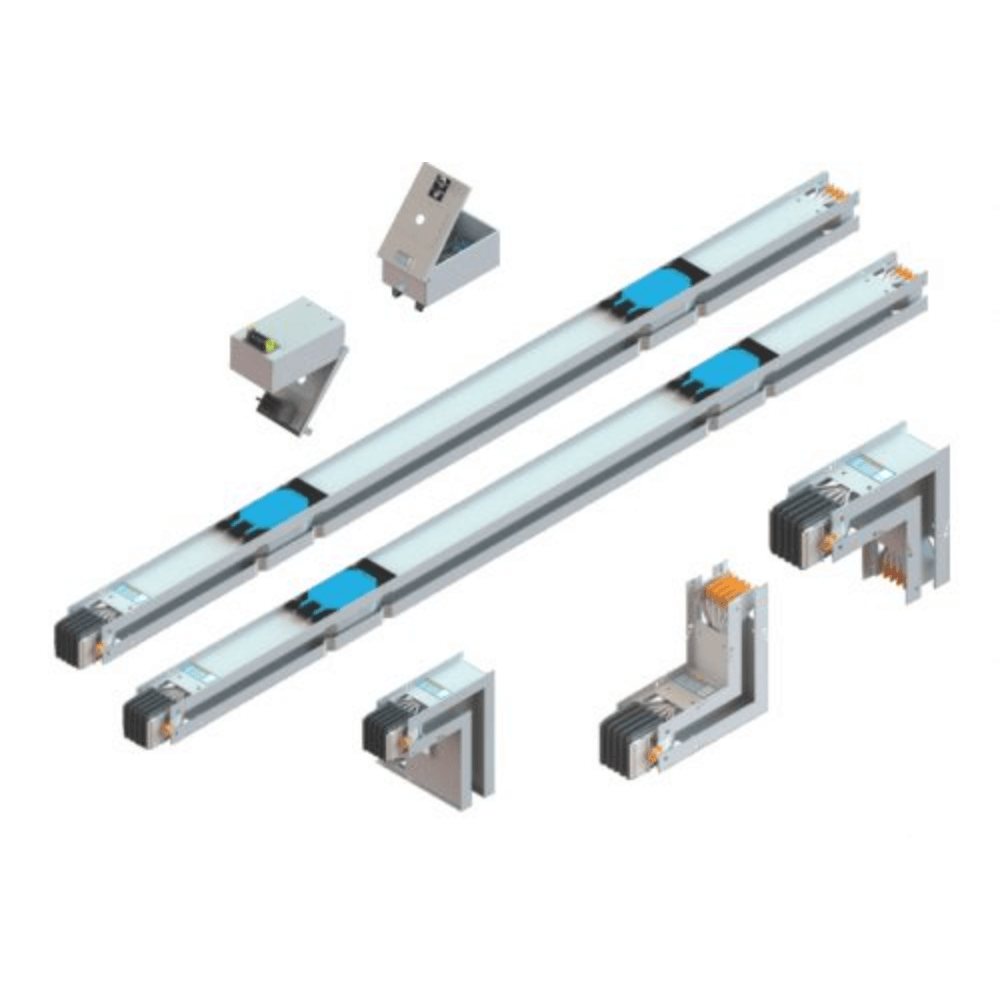

LV Busway System Wave Pro -A (ABB)

Sandwich construction with Class B Insulation 130°C
Aluminum & Copper Conductors
Aluminum Housing
lcw from 30KA to 120KA
IP66 Feeder, IP54 Plugin
Rated Current 250A to 5000A
KEMA-KEUR certified to IEC 61439-1/6

Authorized Channel Partner in Pakistan for Supply, installation, Testing, and Commissioning of ABB Busway system

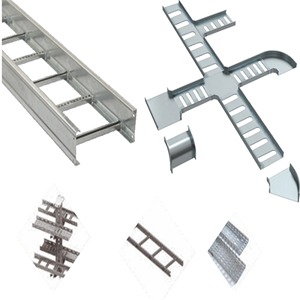

Cable Tray and Cable Ladder

Bilal@ manufactures cable trays and cable ladders as per client requirement in different sizes, gauges, and depths.

Cable trays are more appropriate where a great number of small cables are used, i.e. small electric cable, computer network cable, etc. where as cable ladders are more appropriate for power cables.

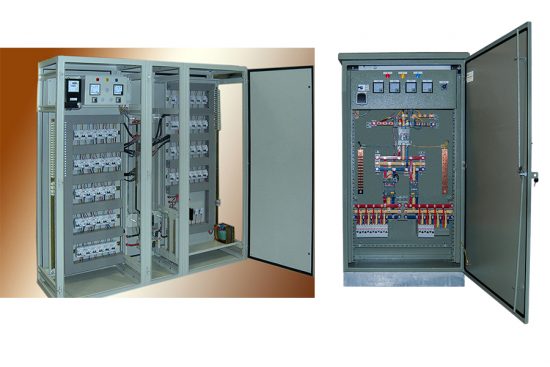

Power Distribution Board

BILAL’s PDB is manufactured to distribute load further to LDBs and it is fed from LT Panel. It exists / installed where load connections are required purposefully. PDB is equipped with incoming and outgoing breakers. It has phase indicators & meters installed on its fascia according to the client requirement.

Lighting Distribution Board

BILAL’s LDB is manufactured to control the light load of domestic, commercial and industrial buildings. It is concealedd as well as surface mounting type. it controls load through ELCBs, MCBs etc.

11KV Industrial & Grid Panels (Complete Solution)

Equipped with high performance VCB VD4/p (ABB Italy)

VD4 PK VCB series specially developed by ABB in conformance to NTDC specs & tested by BILAL at CESI Italy. Prototype testing of panels by BILAL at NTDC RAWAT Lab.
