In today’s real world, the 11kV level serves as a link between high-voltage transmission and end-user supply. Just switching the power is not enough; power management requires significant work, including precision, protection, and absolute reliability. Here is where the real work of the 11kV starts.
The 11kV switchgear panels are designed to handle the significant loads and fault conditions. They ensure smooth power transmission. In industrial plants and commercial areas, a well-designed 11kV switchgear panel reduces downtime and protects the valuable equipment. It is important to understand how these panels are designed, tested, and standardized.

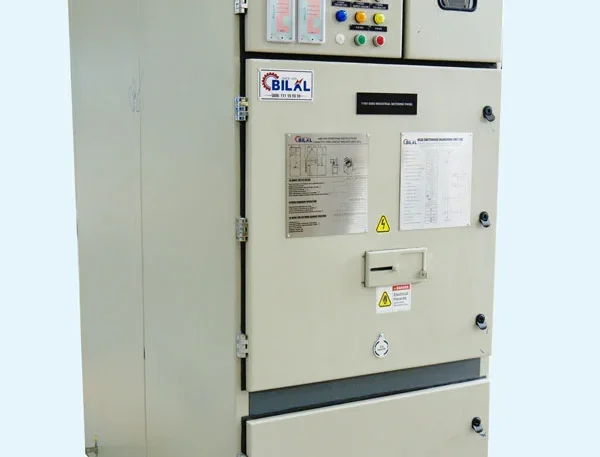

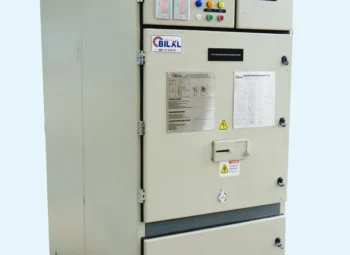

What is an 11kV Switchgear Panel?
An 11kV switchgear panel is a medium-voltage electrical assembly designed to control, protect, and isolate circuits operating at 11.000 Volts. It serves as a link between the high-voltage transmission system and the end-user distribution. They ensure that the power is distributed safely.
At this voltage level, the electrical energy plays a significant role. A small overloading fault can cause a short circuit or insulation failure, which can be life-threatening and damage equipment. To prevent these, 11kV switchgear panels are designed to monitor system conditions and detect minor abnormalities continuously. Their role is not just power distribution but also maintaining system stability by isolating faults without shutting down the whole system.
Design of 11kV Switchgear Panel
The design of the 11kV switchgear panel is a multidisciplinary engineering process that involves considerations of electrical performance, mechanical strength, safety compliance, and environmental stability. It is not just about assembling components; it also ensures that the system can handle normal operating loads and fault conditions.
Electrical Design Considerations
The electrical design of the switchgear panels defines how they operate under both normal and fault conditions. The components should be properly rated and coordinated well under these conditions. Here are some key features that are considered during the electrical design:
- Rated Voltage: 11kV
- Rated Current: Typically 630A to 3150A, depends entirely on the load
- Short Circuit Rating: 25kA or 31.5kA
- Frequency: Usually 50Hz (or 60Hz depends on the region)
- Insulation Level: Designed to withstand system overvoltage’s
Busbar System Design
The busbars are also known as the central power-distribution backbone of switchgear panels. Their design is considered highly important, as it directly affects system efficiency and reliability.
There are some design and configuration considerations for the busbar designs:
- Material: Copper and Aluminum
- Current-carrying Capacity
- Thermal performance and the heat dissipation
- Proper insulation and spacing
For the configurations, the following are the considerations:
- Single Busbar System ( Simple and Economical)
- Double Busbar System (higher reliability and redundancy)
- Busbar Coupler Arrangement (allows load transfer between the sections)
Circuit Breaker Selection
The selection of the circuit breaker is the most crucial step to the switchgear’s performance.
Vacuum Circuit Breakers: They are commonly used for their fast arc-quenching capability, high mechanical endurance, and low maintenance requirements. Their design functions include a breaking capacity that matches the fault levels, an operating mechanism, and coordination with the protection relays.
Insulation and Dielectric Design
The insulation design plays an important role in preventing electrical breakdown and ensuring the system’s safety. There are two major kinds of insulation: Air-Insulation (AIS) and Gas-Insulated (GIS, using SF6 gas).
It is important to keep the path clear and the creepage distances. Proper insulation is essential, as it protects against flashovers, leakage currents, and insulation failures.
Mechanical and Structural Design
The physical structure of the switchgear panel supports all parts and components, ensuring they remain secure. The features should include a robust enclosure for mechanical strength, IP-rated protection against dust and moisture, and an arc-resistant design.
There should be separate sections for the circuit breakers, busbars, cable connections, and the control relay compartments. The mechanical design helps ensure a safe environment for the operator and long-term durability in harsh weather conditions.
Protection and Control System Design
The protection and control system design is essential, as it ensures excellent performance throughout and effective fault management. The integration of the numerical relays should include overcurrent and earth-fault protection, short-circuit protection, and optional differential protection.
The control features include local and remote operation, SCADA compatibility, and interlocking schemes to prevent incorrect operations. The switchgear panel should be properly designed to ensure accurate fault detection and safe system operation.
Testing of 11kV Switchgear Panels
Testing the switchgear panel is a critical step, as it verifies that the system performs in accordance with the design specification. Testing is not just about checking functionality but also about verifying that the switchgear can withstand electrical stress, interrupt faults effectively, and operate safely throughout its lifecycle.
| Test Category | Test Name | Purpose | Method/ Procedure | Expected Outcome | Practical Importance |
| Electrical Integrity | Insulation Resistance Test (IR Test) | It is to check the insulation strength between the phases and earth. | The test is performed by using a megger (high DC voltage). | The high resistance values indicate no leakage paths followed. | The test is performed to prevent insulation failure and current leakage. |
| Electrical Integrity | High Voltage (Hi-Pot Test) | The purpose is to verify that insulation can withstand overvoltage conditions. | The voltage exceeds the rated voltage for a fixed duration. | There is no breakdown or flashover. | The test ensures the system’s safety during voltage surges. |
| Thermal Performance | Temperature Rise Test | Evaluate heating under full load | The system is run at rated current continuously, | Temperature rise within the defined limits. | The test prevents overheating and insulation degradation. |
| Current Path Reliability | Contact Resistance Test | Ensure low resistance at joints and contacts. | It is measured using the micro-ohmmeter. | Very low resistance value | The test avoids power loss and overheating at connections. |
| Full System Validation | Primary Injection Test | Test the complete system under real conditions. | High current is being injected through the primary circuit. | Proper relay and breaker operations. | The test of real-time performance. |
| Installation Verification | Functional Operation Test | Check the complete system functionality. | Operate breakers, controls, l and interlocks, | Smooth operation | Ensures safety from electric shock |
| Safety System Check | Earthing Test | Verifying the grounding effectiveness | Helps to measure the Earth’s resistance. | Low Resistance but within the limits. | Ensure safety from electric shock. |
| Advanced Diagnosis | Partial Discharge Test | Helps to detect early insulation defects. | Helps to measure discharge under voltage stress. | There is minimal to no discharge. | Prevent future insulation failures. |
Safety Standards for 11kV Switchgear Panels
The safety standards in 11kV switchgear design and operations are governed by internationally recognized standards such as IEC 62271 and the IEEE C37 series. These help define the requirements for performance, insulation levels, testing, and safe operations. These standards help ensure that the switchgear panels can withstand electrical stresses such as short circuits, overvoltage’s, and thermal loads.
part from the performance standards, which emphasize operator protection and risk mitigation. These modern 11kV switchgear panels are designed with the internal arc classifications (IAC). These help to ensure that the arc faults are contained and directed away from personnel. In order to avoid accidents, accidental contact, and unsafe operations, it is necessary to implement proper earthing systems, mechanical and electrical interlocks, and IP-rated enclosures.
The remaining standards require labeling, safe access to compartments, and fail-safe mechanisms during maintenance. Collectively, these measures reduce the risk of electrical hazards and ensure that equipment and personnel are safe under normal and fault operating conditions.
Conclusion
11kV switchgear panels are essential for the safe and reliable medium-voltage power distribution. From the design to component integration to testing and implementing strict safety standards, each point ensures effective operations and fault protection.
A properly selected and maintained switchgear system helps reduce downtime, minimize risks, and guarantee long-term performance. It is the best investment for any modern electrical infrastructure.
