When a procurement specification for an electrical project in Pakistan requires type-tested switchgear conforming to IEC 62271-200 or IEC 61439, the phrase carries precise technical and legal meaning. It is not a quality rating or a brand preference. It is a verifiable certification that a specific panel design has physically passed a defined battery of electrical, mechanical, and safety tests at an accredited independent laboratory. Understanding what that means in practice — and how to distinguish a genuinely certified product from one that merely claims compliance — is one of the most important skills an electrical engineer or procurement professional can have in Pakistan’s switchgear market.
This guide explains what type testing is, what the key IEC standards cover, what tests are conducted and why, how to read and verify a type test report, and what questions to ask a switchgear manufacturer in Pakistan before accepting their product as genuinely type-tested. It is written by the engineering team at Bilal Switchgear Engineering, Pakistan’s ABB Licensed Manufacturer of IEC-certified LV and MV switchgear, operating from Lahore since 1978.
What Type Testing Actually Means
Type testing is the process by which a manufacturer demonstrates that a specific switchgear design performs safely and reliably under the most demanding conditions it will encounter in service. A type test is conducted on a physical prototype or production sample of a panel design at an accredited test laboratory. The tests simulate extreme electrical events — short-circuit faults, sustained overloads, internal arcing, overvoltage impulses — that the panel may experience over its operational lifetime.
Once a design passes type testing, the test results are documented in a formal type test report issued by the laboratory. This report is specific to the tested design. It identifies the exact panel model, rated voltage, rated current, busbar configuration, protective device ratings, and enclosure dimensions. Any change to these parameters that affects performance requires new type testing.
The alternative to type testing is called routine testing. Routine tests are conducted on every panel leaving the production line and verify basic electrical safety parameters. They do not replicate the extreme fault conditions covered by type testing. A panel that has passed routine testing only has not been validated against fault conditions and cannot be called type-tested.
The Two Key IEC Standards for Switchgear in Pakistan
Two International Electrotechnical Commission standards govern switchgear type testing in Pakistan and are referenced in NEPRA grid connection requirements, DISCO technical specifications, and major industrial project procurement documents.
IEC 62271-200: Medium Voltage Metal-Enclosed Switchgear
IEC 62271-200 applies to AC metal-enclosed switchgear and control gear for rated voltages above 1 kV and up to and including 52 kV. In Pakistan’s power system, this covers the 11 kV, 33 kV, and 132 kV switchgear used at primary receiving substations, grid stations, and industrial incoming feeders. It replaced the previous IEC 60298 standard and introduced two significant advances: Loss of Service Continuity (LSC) classification and Internal Arc Classification (IAC).
LSC classification describes whether maintenance activities on one section of the switchgear require other sections to be de-energized. LSC2B is the highest classification, meaning that individual panels can be maintained while adjacent panels remain energized, which is critical for applications where continuous supply cannot be interrupted. IAC classification describes how the switchgear enclosure behaves during an internal arc fault and which faces of the enclosure are safe for personnel to stand in front of during such an event.
Pakistan regulatory context: NEPRA’s Grid Code and the technical specifications issued by NTDC and most DISCOs for switchgear procurement specify IEC 62271-200 compliance and require type test reports from accredited laboratories. Equipment supplied to national grid projects must comply with these specifications as a contract condition. NTDC vendor approval requires demonstration of type test compliance for all MV equipment categories.
IEC 61439: Low Voltage Switchgear and Controlgear Assemblies
IEC 61439-1/2 applies to low voltage switchgear and controlgear assemblies — the distribution boards, motor control centres, power factor correction panels, and main switchboards used throughout commercial and industrial facilities at voltages up to 1000V AC. IEC 61439 replaced the earlier IEC 60439 standard and introduced a more rigorous verification framework that distinguishes clearly between design verification (what was previously called type testing) and routine verification (what was previously called routine testing).
Under IEC 61439, a manufacturer must demonstrate compliance with the standard either through testing, calculation, or comparison with a reference design. The highest level of assurance comes from full test verification, which involves physical testing of a panel assembly at an accredited laboratory. This is what procurement specifications mean when they reference IEC 61439 type-tested switchgear.
The Seven Type Tests: What Each One Verifies
A complete type test programme for medium voltage switchgear under IEC 62271-200 comprises seven distinct test categories. Each targets a specific failure mode that has caused real-world accidents and outages in switchgear installations worldwide.
1. Dielectric Tests
Dielectric tests verify that the insulation systems throughout the switchgear withstand specified overvoltage’s without breakdown. Two separate tests are conducted: the power frequency withstand test applies sustained AC voltage across all insulation for one minute, and the lightning impulse withstand test applies short-duration impulse voltages simulating the fast-rising wavefronts caused by lightning strikes. The test voltages are set by the rated insulation level of the switchgear, which is specified according to the maximum system voltage.
2. Temperature Rise Tests
Temperature rise tests verify that when the switchgear carries its rated continuous current, no component exceeds the maximum allowable temperature specified by the standard. Excessive temperatures degrade insulation, accelerate contact wear, and can cause thermal runaway in conductors and busbars. The test is conducted at rated normal current through all main current-carrying paths simultaneously until thermal equilibrium is reached, and temperatures are measured at critical points throughout the assembly.
3. Short-Circuit Current Withstand Tests
Short-circuit tests verify that the switchgear sustains the rated peak and rated short-time withstand currents without structural failure, contact welding, or arc propagation. These are the most physically demanding of all type tests. The test current is applied through the switchgear busbar and circuit breaker current paths at levels several times the rated normal current, simulating the fault currents that the equipment must interrupt and withstand in service.
4. Internal Arc Classification Tests
Internal arc tests are unique to IEC 62271-200 and verify that in the event of an arc fault developing inside the switchgear enclosure, the enclosure prevents the arc energy from causing injuries to personnel standing in front of, beside, or behind the panel. The test involves deliberately igniting an arc inside the live switchgear and verifying that indicators placed around the enclosure at personnel positions are not ignited or damaged by the event. IAC classification is one of the most important safety certifications a switchgear panel can carry.
5. IP Rating Verification (Degree of Protection)
IP rating tests verify that the enclosure provides the specified protection against the ingress of solid particles and moisture. IP4X is the minimum for indoor installation, IP54 is common for outdoor or dusty indoor environments, and IP65 is required for fully weatherproof outdoor installation. The test involves exposing the enclosure to specified quantities of test dust and water spray and verifying that internal components remain dry and free of contamination.
6. Electromagnetic Compatibility (EMC) Tests
EMC tests verify that the switchgear does not emit electromagnetic interference above specified levels that could disrupt nearby electronic equipment, and that it maintains correct operation when subjected to external electromagnetic disturbances. This is increasingly important in modern facilities where switchgear is installed in close proximity to sensitive electronic control systems and communication equipment.
7. Mechanical Operation Tests
Mechanical tests verify that circuit breakers, disconnectors, earthing switches, and interlocking mechanisms operate reliably through the specified number of operating cycles without degradation that affects safety or reliability. The interlocking systems that prevent unsafe switching sequences are also verified to operate correctly under the test conditions.
How to Read and Verify a Switchgear Type Test Report
The type test report is the document that proves a switchgear panel is genuinely type-tested. Knowing how to read and verify this document is a critical skill for electrical consultants and procurement engineers in Pakistan. A legitimate type test report contains the following elements.
- Issuing laboratory name and accreditation details: The laboratory must be accredited to ISO/IEC 17025 for electrical testing. Recognized laboratories include KEMA (Netherlands), ASTA (UK), CPRI (India), and PCSIR (Pakistan). The accreditation scope must cover the specific tests described in the report.
- Exact panel identification: Model designation, rated voltage, rated current, short-circuit rating, busbar cross-section, and protective device model numbers must match the equipment being purchased. A report for a 630A panel does not cover a 1250A panel.
- Test standard and edition: The report must reference IEC 62271-200 (for MV) or IEC 61439 (for LV) and identify the edition of the standard that was current at the time of testing.
- Test results for each test category: Pass or fail results with measured values for temperature rise, dielectric withstand levels, short-circuit ratings, and IP classification must all be present.
- Test date and report validity: Type test reports do not expire in themselves, but a report more than 10 to 15 years old on equipment that has not changed should prompt questions about whether the tested design still matches current production.
Verification tip: Reputable manufacturers including Bilal Switchgear Engineering can provide original type test reports with laboratory watermarks and signatures on request during procurement. If a supplier provides only a brochure extract or a self-declaration of IEC compliance without the actual test report, the claim cannot be independently verified and should be treated with caution.
Type-Tested vs Non-Type-Tested Switchgear: The Real Difference in Pakistan
In Pakistan’s switchgear market, the gap between type-tested and non-type-tested products is wider in practical terms than the technical definitions suggest. Here is what that gap means for facility owners and procurement teams.
Safety Under Fault Conditions
Non-type-tested switchgear has not been validated under the fault conditions it will face in service. A panel that passes routine electrical tests in a workshop may fail structurally when subjected to the electromagnetic forces of a full short-circuit fault. Type-tested switchgear has demonstrated its structural integrity under these conditions at the current rating declared on its nameplate.
Insurance and Liability
Pakistan’s industrial insurance market increasingly requires IEC-certified switchgear for cover at competitive premiums. Following a switchgear fault in a facility with non-type-tested equipment, insurers may use the absence of certification to challenge or reduce claims. For large industrial facilities where a single electrical fault can cause losses running into hundreds of millions of rupees, this risk is material.
Regulatory and Contractual Compliance
NTDC, NEPRA-regulated DISCOs, and international project lenders financing infrastructure projects in Pakistan specify type-tested switchgear as a contract requirement. Supplying non-type-tested equipment on these projects constitutes a contractual breach that can trigger rejection of the equipment, project delays, and financial penalties. Bilal Switchgear Engineering’s ABB type-tested switchgear, manufactured under ABB’s Licensed Manufacturer programme, carries full type test documentation for all rated configurations. See our Power Division for product specifications.
Long-Term Operational Reliability
Type-tested switchgear is designed and validated to operate reliably at its nameplate ratings for a service life of 25 to 30 years under normal operating conditions. Non-type-tested panels may perform adequately under normal conditions but have unknown margins against fault conditions, overload, and environmental stress. The difference becomes visible over the operating lifetime of the facility, not at initial commissioning.
Bilal Switchgear Engineering: Certified Manufacturing Since 1978

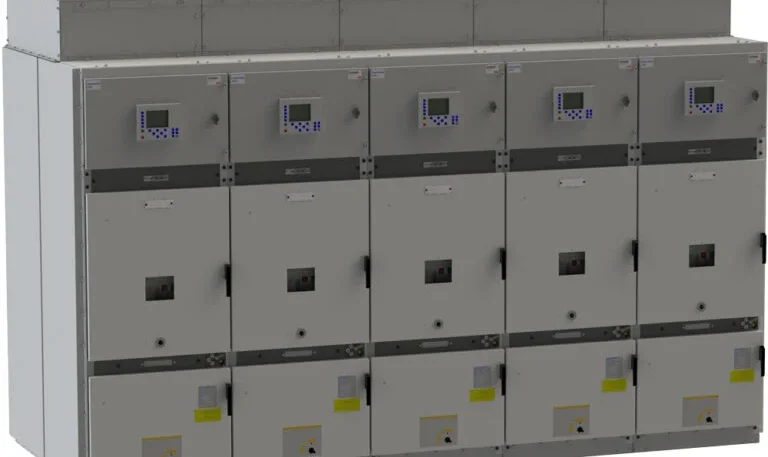

Bilal Switchgear Engineering manufactures ABB type-tested LV and MV switchgear in Lahore under ABB’s Licensed Manufacturer programme. Our ABB UniSafe 2.0 medium voltage panels are type-tested to IEC 62271-200 at ratings up to 17.5 kV. Our ABB System Pro E low voltage switchgear is type-tested to IEC 61439-1/2 at ratings up to 6300A. Type test reports from accredited international laboratories are available for all standard configurations and can be provided to clients and their consultants at the enquiry stage.
The company holds four credentials that directly underpin the quality of its type-tested switchgear: ABB Licensed Manufacturer status, Siemens System Integrator certification, ISO 9001:2015 quality management certification, and NTDC approved vendor status. Together these credentials provide the documentation framework that DISCO, NTDC, and private sector procurement teams require. Learn more about our company and credentials.
Specifying Type-Tested Switchgear for Your Next Project
Type-tested switchgear is not a premium upgrade for clients who want the best. It is the baseline standard for any electrical installation where fault conditions, continuous operation, and personnel safety are genuine requirements — which describes every industrial and commercial facility of significance in Pakistan. The type test report is the document that proves this standard has been met, and verifying that document is the procurement professional’s responsibility.
Bilal Switchgear Engineering has manufactured and supplied IEC-certified, ABB type-tested switchgear to Pakistan’s power utilities, industrial clients, and infrastructure projects since 1978. Our engineering team is available to advise on switchgear specification, review project requirements, and provide formal quotations with full type test documentation.
Contact our switchgear engineering team in Lahore to discuss your project requirements or request type test documentation for your switchgear specification.
Frequently Asked Questions
What is the difference between type-tested and routine-tested switchgear?
Type tests are conducted once on a prototype or sample of a specific panel design at an accredited laboratory, under extreme fault conditions including short-circuit, dielectric overvoltage, internal arc, and IP ingress. They validate the design. Routine tests are conducted on every panel leaving the production line and verify basic electrical safety parameters such as insulation resistance, dielectric withstand at reduced levels, and wiring continuity. Routine tests verify workmanship. Only panels whose design has passed type testing can be described as type-tested.
Does all switchgear in Pakistan need to be type-tested?
Type-tested switchgear is mandatory for projects connected to the national transmission network (NTDC) and is specified by most DISCOs for grid-connected installations. It is also required by most international project lenders financing infrastructure projects in Pakistan. For private industrial and commercial installations not connected to the national grid, type testing is not legally mandatory under current Pakistani regulations, but is strongly recommended for any installation where fault conditions, personnel safety, and insurance coverage are considerations.
How do I verify that a Pakistani manufacturer’s switchgear is genuinely type-tested?
Request the original type test report from the manufacturer. The report must identify the issuing accredited laboratory, the exact panel model and rated parameters, the IEC standard tested against, and the individual test results. Cross-check the rated parameters in the report against the panel being purchased. If the manufacturer cannot produce the original report, or provides only a brochure reference to IEC compliance, the type testing claim cannot be independently verified.
Can I use a type test report from one panel rating to cover a different rating?
No. A type test report covers the specific design, rated voltage, rated current, busbar cross-section, and protective device configuration that was tested. A report for a 630A panel at 11 kV does not cover a 1250A panel at 11 kV, even if they are the same model designation. Higher current ratings require separate type testing because the electromagnetic forces on busbars, the thermal performance of insulation, and the short-circuit withstand behaviour all change with current rating.
What is IAC classification and why is it important for switchgear in Pakistan?
IAC (Internal Arc Classification) under IEC 62271-200 certifies that a switchgear enclosure has been tested against internal arc fault conditions and that the enclosure protects personnel standing in specified positions from injury during an arc event. Switchgear carrying IAC classification has physically survived a deliberate internal arc test at an accredited laboratory. In Pakistan’s operating environment, where maintenance standards and inspection frequency vary across different site types, IAC-classified switchgear provides a critical safety margin that non-classified panels cannot match. All ABB UniSafe 2.0 panels manufactured by Bilal Switchgear Engineering carry IAC classification.
