Outdoor Mist Cooling System

Pioneer in Heat Stress Relief

1. Mobility:

Mobile unit with wheel can easily move around to different hotspots. Front wheel can be locked when unit is correctly positioned.

2. Integrated Water Tank:

Water tank is attached with mist fan, the mobile unit can continuously produce mist for the maximum time of 3 hours without refill.

3. Supply Water Automatically:

The valve units is specially designed for water supply, when water level in the tank drop to a fixed level, it will be supplied automatically.

4. Adjustable Misting Volume:

Units are specially designed with an adjustable level to vary the amount of water mist delivery. This favorable feature allows customer to operate indifferent environment.

5. Low Noise:

Whole unit operate just like a fan with low noise level from air delivery. Unlike Conventional high pressure pump system it emits high pitch sound and occasionally humming.

6. Oscillation Fan:

Fan can oscillate between O and 90 and tilt angle is adjustable between ±15.

7. Durable Motor:

Every fan motor ties an over-temperature protection and is of low temperature rise design for long life operation.

8. No Filter:

Centrifugal atomization, without nozzle, no need for water-filter.

Applications

Open-air Restaurants Factory and Warehouses • Sports Ground and Swimming Pools

Green Houses • Livestock Farms • Outdoor Work Sites OR any Outdoor Area • Garden Parties etc.

Outdoor Mist Cooling System Specifications | BSE-24 BSE-30 BSE-34 Mist Fan 7500 to 9000 CFM

BSE Outdoor Mist Cooling System — Industrial Mist Fan BSE-24, BSE-30, BSE-34

Fan Blade Diameter 600mm to 860mm | Air Volume 7500 to 9000 CFM | Effective Area 15 to 30 sqft

Max Misting Volume 7.5 L/h | Temperature Drop 4–6°C | Noise Level 68 dba | Height 1945mm

Max Mist Delivery Distance 15–19 Feet | Oscillation Angle 0–90° | Outdoor Industrial Mist Cooling

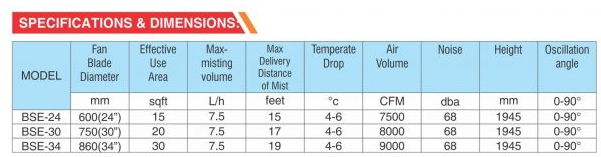

Specifications & Dimensions

Outdoor Mist Cooling System — BSE-24 | BSE-30 | BSE-34 Industrial Mist Fan

BSE Outdoor Mist Fan — Models BSE-24, BSE-30, BSE-34 | Blade Diameter, Effective Area, Misting Volume, Air CFM, Temperature Drop & Oscillation

MODEL	Fan Blade Diameter	Effective Use Area	Max- misting volume	Max Delivery Distance of Mist	Temperate Drop	Air Volume	Noise	Height	Oscillation angle
MODEL	mm	sqft	L/h	feet	°C	CFM	dba	mm	0-90°
BSE-24	600(24")	15	7.5	15	4-6	7500	68	1945	0-90°
BSE-30	750(30")	20	7.5	17	4-6	8000	68	1945	0-90°
BSE-34	860(34")	30	7.5	19	4-6	9000	68	1945	0-90°
