BSE-DAC Direct Drive Axial Fan — Bracket & Pedestal Series
Models BSE-DAC-16 to BSE-DAC-30 | 16 to 30 Inch Blade Diameter
Air Flow Range: 3000 CFM to 13000 CFM | Motor Rating: 0.5 HP to 5 HP
400V 3-Phase 50Hz Supply | 1450 RPM | Noise Level 60–75 dBA

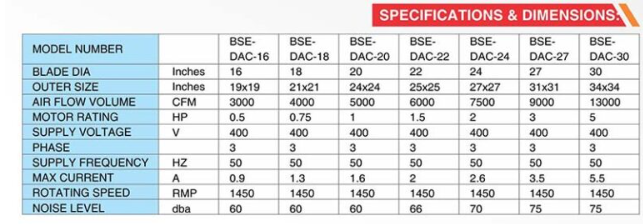

Specifications & Dimensions
Industrial Bracket & Direct Axial Fans — Specifications & Dimensions
BSE-DAC Industrial Bracket & Pedestal Fan — Models DAC-16 to DAC-30 | Blade Dia, CFM Airflow, Motor HP, Voltage, Current & RPM
| Model Number | BSE- DAC-16 | BSE- DAC-18 | BSE- DAC-20 | BSE- DAC-22 | BSE- DAC-24 | BSE- DAC-27 | BSE- DAC-30 | |
|---|---|---|---|---|---|---|---|---|
| Blade Dia | Inches | 16 | 18 | 20 | 22 | 24 | 27 | 30 |
| Outer Size | Inches | 19×19 | 21×21 | 24×24 | 25×25 | 27×27 | 31×31 | 34×34 |
| Air Flow Volume | CFM | 3000 | 4000 | 5000 | 6000 | 7500 | 9000 | 13000 |
| Motor Rating | HP | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 5 |
| Supply Voltage | V | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Supply Frequency | HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max Current | A | 0.9 | 1.3 | 1.6 | 2 | 2.6 | 3.5 | 5.5 |
| Rotating Speed | RPM | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Noise Level | dba | 60 | 60 | 60 | 66 | 70 | 71 | 75 |
