Heavy Duty Belt Driven Industrial Supply Fan
Blade Diameter Range: 1000mm to 1800mm | High Volume Axial Supply Fan
Air Flow: 18000 to 35000 CFM | Motor Rating: 1.5 HP to 2 HP | 400V 3-Phase 50Hz
Rotational Speed: 400–550 RPM | Max Current: 2A to 4.5A | Noise Level: 45–50 dBA

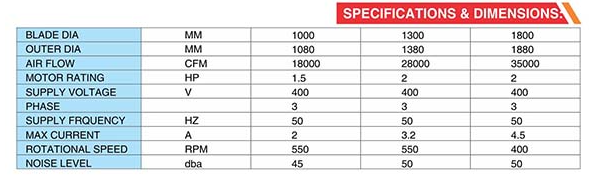

Specifications & Dimensions
Heavy Duty Belt Driven Industrial Supply Fan — Specifications & Dimensions
Belt Driven Industrial Supply Fan — Blade Dia 1000mm to 1800mm | CFM Airflow, Motor HP, Voltage, Max Current & RPM Data
| Specification | Unit | 1000 mm Model |
1300 mm Model |
1800 mm Model |
|---|---|---|---|---|
| Blade Dia | MM | 1000 | 1300 | 1800 |
| Outer Dia | MM | 1080 | 1380 | 1880 |
| Air Flow | CFM | 18000 | 28000 | 35000 |
| Motor Rating | HP | 1.5 | 2 | 2 |
| Supply Voltage | V | 400 | 400 | 400 |
| Phase | 3 | 3 | 3 | |
| Supply Frequency | HZ | 50 | 50 | 50 |
| Max Current | A | 2 | 3.2 | 4.5 |
| Rotational Speed | RPM | 550 | 550 | 400 |
| Noise Level | dba | 45 | 50 | 50 |
